Luma homelift
The lift that travels through the ceiling.
The Luma home lift brings stylish mobility to your home, without major renovations. Instead of a traditional stairlift, it offers an elegant, compact solution that fits seamlessly into existing living spaces. All it needs is a simple ceiling cut-out, as the lift requires no shaft or supporting walls. Its smart rail system is self-supporting, giving you maximum flexibility in choosing the installation location.
| No shaft pit | Direct floor mounting, no pit required |
| Drive system | Winding drum drive, operated with constant-pressure controls |
| Compact & quiet | Slim design with only 55 dB operating noise |
| Elegant design | Acrylic glass and integrated lighting |
| Easy installation | Ready for use in just 1–2 days |
Luma homelift for indoor use
-
Capacity
Max. 180 kg
-
Travel height
3 meters, 2 stops
-
Drive system
Winding drum drive with constant-pressure operation via push buttons
-
Power supply
110–240 V AC, max. 5 A, 50/60 Hz, single-phase
Installation
We deliver the Luma Lift mostly pre-assembled and install it at your home. Before installation, a general contractor arranged either by the homeowner or by us usually prepares the site.
If an electrical outlet needs to be moved closer to the lift, an electrician will handle it. Installing the lift itself typically takes just 1 to 2 days.
Safety
At Garaventa Lift, safety comes first. The Luma meets all major standards and provides reliable protection for everyday use. Key safety features include:
• Emergency stop and alarm button
• Obstacle detection sensors
• Overspeed governor
• Door locking system
• Certified to applicable standards
Dimensions
The Luma Lift requires very little space and can be installed almost anywhere. Thanks to its compact design, it is ideal for existing buildings and spaces with limited room.
The lift offers a flexible solution for barrier-free access in small spaces. It is simple, efficient, and does not require major construction work.
Features of the Luma homelift
-
Rail
Smooth and steady travel along the rail system. Flexible positioning within the room.
-

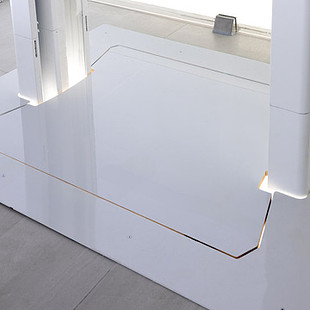

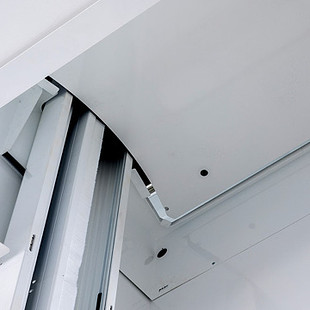

Car top
A floor cut-out is trimmed with the included kit. The top landing is automatically covered when the lift descends.
-

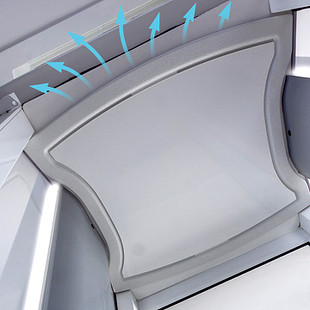

Ventilation fan
Provides air circulation and comfort inside the cabin.
-

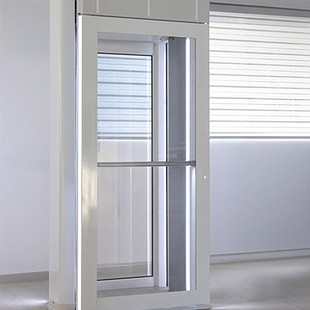

Acrylic glass panels
Clear acrylic panels create an open and spacious feel.
-

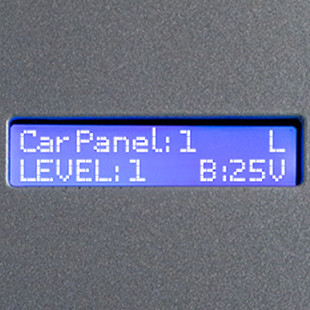

LCD status display
Shows operating status and possible faults.
-

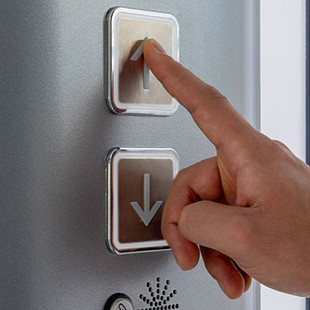

Cabin control button
Illuminated constant-pressure buttons and an integrated call button in the frame ensure easy operation.
-

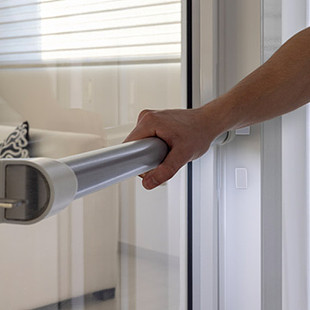

Full-height door with handrail
Door with acrylic glass panel, secure locking system, and sturdy handrail for maximum safety.
-

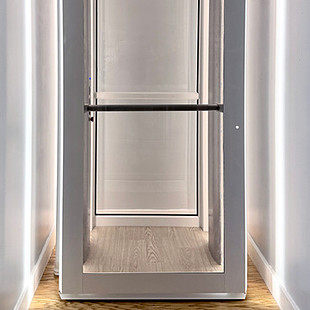

Integrated lighting
Elegant lighting elements in the door and cabin create a pleasant atmosphere and better visibility.
-

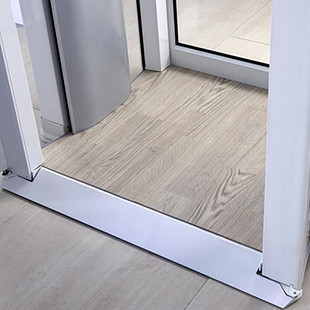

Cabin floor
The cabin floor features a non-slip surface. Thanks to the sloped entrance, no ramp or pit is needed, reducing trip hazards.
-

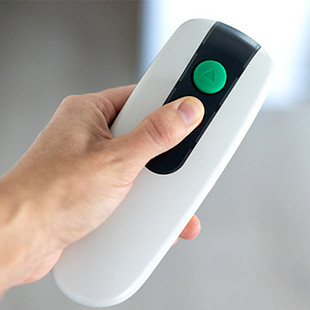

Remote controls
Two wireless remote controls are included for convenient lift operation.
Luma Broschüre (only available in German)
(PDF, 2.01 MB)
We have the perfect solution for you.
Contact our specialists for a free consultation.
-
Meet our sales team
We're here to help you find the right lift solution for your needs. Give us a call!
-
Enrico Ghidotti
Sales Manager Switzerland
Contact / Regions:
AI, AR, SG, SH, TG, TI, ZG, ZH
Phone: 041 854 78 23
Mobile: 079 251 42 26
enrico.ghidotti@garaventalift.ch -
Marcel Wicki
Sales Consultant
Contact / Regions:
AG, GL, GR, LU, NW, OW, SZ, UR
Phone: 041 854 78 27
Mobile: 079 373 62 56
marcel.wicki@garaventalift.ch -
Marcel Schulz
Sales Consultant
Contact / Regions:
BE, BL, BS, FR, VS, SO
Phone: 041 854 78 28
Mobile: 079 303 60 03
marcel.schulz@garaventalift.ch
The Luma lift has a load capacity of 180 kg.
The Luma Lift operates on standard household power (100–240 V AC, single-phase, 15A).
The cabin measures 729 mm x 706 mm.
The cost depends on your specific installation situation. In general, there will be costs for creating the ceiling opening, and additional construction work may be required depending on the site. We are happy to provide you with a personal quote.
The Luma Lift connects two levels.
